The module and base adopts plug-in structure.Unplug the module,put cables into the entrance hole andconnect corresponding terminals.And then plug the module onto the base.
L1(7),L2(8):Non-polarized signal bus input terminal.
AS1(9),AS2(10):passive input,connect passive normally open contact(alarms when device's action closes);It can also be set to normally closed input by using hand-held Encoder.
Signal bus L1 and L2 adopt RVS twisted pair,and cross section≥1.0mm2;AS1 and AS2 adopt RV wire,and cross section≥1.0mm2.The length of connecting cables should be limited to a signal wire's resistance≤20Ω,or increase the cable diameter.

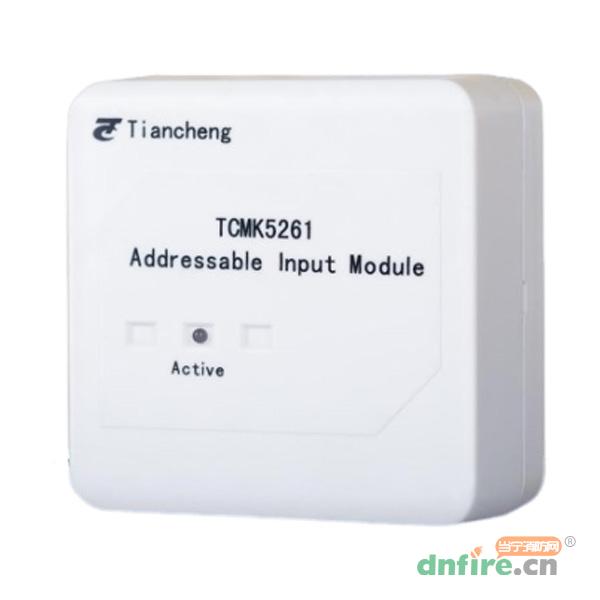

•Designed to connect with active devices in field such as water flow indicator,pressure switch,position switch,signal valve and devices able to transmit back switch signals
·The built-in microprocessor processes messages intelligently
·Plug-in structure
Operating voltage | Loop 24V(16V~28V) |
Operating current | Standby current:≤0.2mA; Action current:≤0.8mA |
Operating Environment | Temperature:-10℃~+55℃; Relative Humidity:≤95% non-condensing |
Code range | 1~255 |
Weight | ABS;Porcelain white |
Material and color of enclosure | About 110g(with base) |
Mounting hole distance | 60mm |
Dimension(L×W×H) | 86mm×38mm×86mm(with base) |
