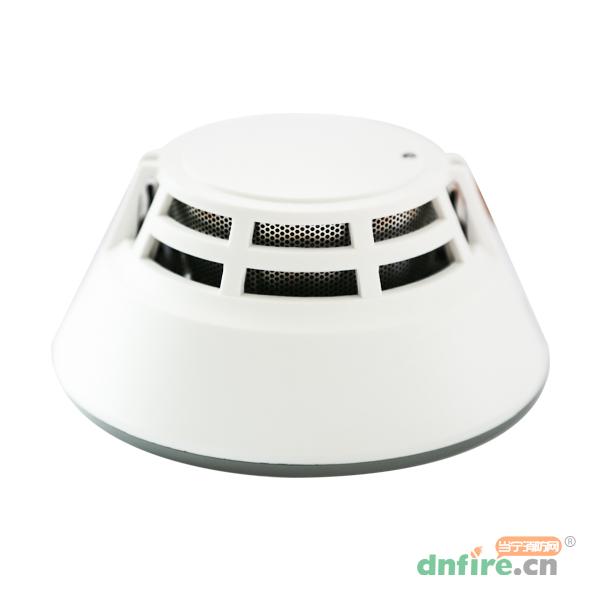

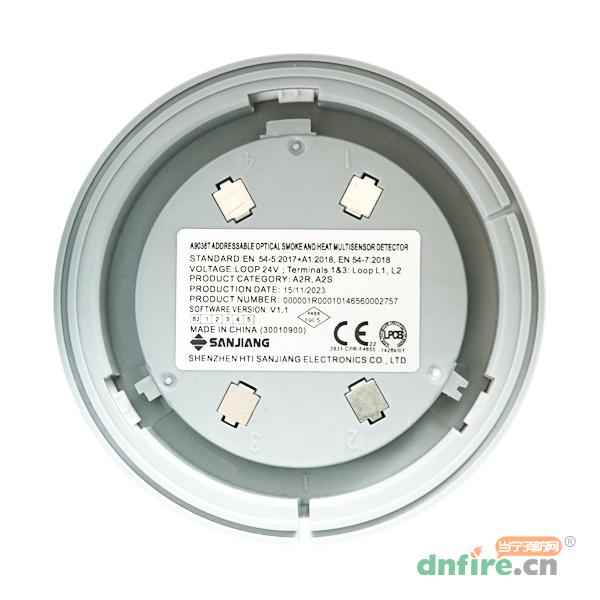

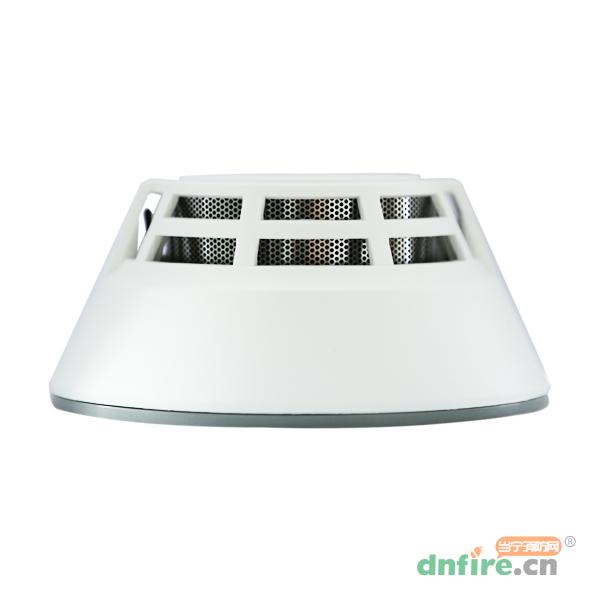

A9036T点型复合式感烟感温火灾探测器是由一个感烟传感器和两个感温传感器组成，它不仅具有光电感烟火灾探测器的性能，还具有感温探测器的性能。探测器采用无极性双总线，可与三江生产的火灾报警器配套使用。
The A9036T point composite smoke and temperature fire detector(hereinafter referred to as the detector)is composed of a smoke sensor and dual heat sensors.It not only has the performance of photoelectric smoke fire detector,but also has the performance of heat detector.The detector is made of non-polar two bus,which can be used with fire alarm control panel produced by our company.
设计先进时尚，360°可视指示灯，报警时红色常亮
无极性二总线，安装维护方便
电子编码，可通过编码器现场改写
内置单片机，可实时处理采样数据
具有温度、湿度和灰尘积聚漂移补偿功能以及传感器故障检测功能
动态算法，支持瞬态抑制和漂移补偿功能
The low profile design of the Optical/Heat Multisensor detector Detector is sleek and evolutionary,with a 360°LED indicator which illuminates red when in alarm.
Non-polarity,two-bus connection that ensures convenient installation and maintenance.
It can realize electronic coding and rewrite the address via coder in site.
Within a single-chip MCU,it can realize real-time data acquisition and processing,realize a curve tracing for the field situation.
It has a temperature,humidity and dust accumulation drift compensation function and a sensor fault detection function(fault reporting to fire alarm control panel).
A sophisticated dynamic algorithm,providing transient rejection and compensation for drift whilst maintaining accurate sensitivity.
|
执行标准 Executive Standard |
EN54-5&EN54-7 |
|
工作电压 Operating Voltage |
DC24V（脉冲调制，信号线供电） (pulse modulation) |
|
指示灯 Work Indication |
监视状态红色闪烁，报警红色常亮 The red indicator will blink in the monitoring status or remain lit in the alarm status |
|
编码方式 Coding Mode |
电子编码，范围1~324 It can realize electronic coding via coder in site.Address codes 1 to 324 are available for selection |
|
线制 Wiring Method |
无极性二总线L1、L2 non-polarity two-bus system(L1,L2) |
|
工作环境 Operating Environment |
温度(temperature):-10℃～+55℃；湿度≤95%(无凝露non-condensing or icing) |
|
重量 Weight |
约123（含底座 with Base） |
|
外形尺寸 External Dimensions |
φ100mm×H58mm（含底座 with Base） |
