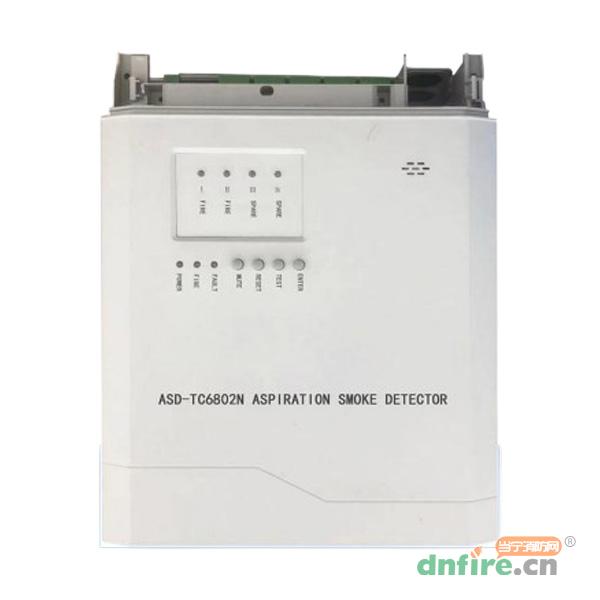

ASD-TC6802N (hereinafter referred to as detector) is the latest high-precision and high-sensitivity de-tector product produced by our company, which has the functions of alarm, fault reporting and relayoutput. This detector can not only be used as an independent detection system, but also be used withthe fire alarm host of our company through the loop bus.
二、ASD-TC6802N Aspiration Smoke Detector的特点
•Strong function and high reliability
•Color Chinese character menu display interface
•Flexible modular structure and multiple functional configuration options
•Suitable for different
三、ASD-TC6802N Aspiration Smoke Detector的技术参数
Operating voltage
Bus voltage: 24V, and the allowable range is 16V~28V
Power supply: DC24V, the allowable range is DC20V~DC28V
Operational current
Power supply:monitoring current ≤1.5A, alarm current ≤ 1.8A
Relay output
1A/24VDC, 1A/120VAC
Networking mode
Loop bus communication, RS-485,CAN bus.
Operating temperature range
-10℃~55℃
Outline dimension
240mm×103mm×313mm
Shell material
The main machine shell is made of plastic,
and the power box shell is made of metal insulating coating.
Ingress protection
IP30
Single tube parameter and total parameter
he length of single-pipe pipeline is 100m,
and the total pipeline length is 200m.
