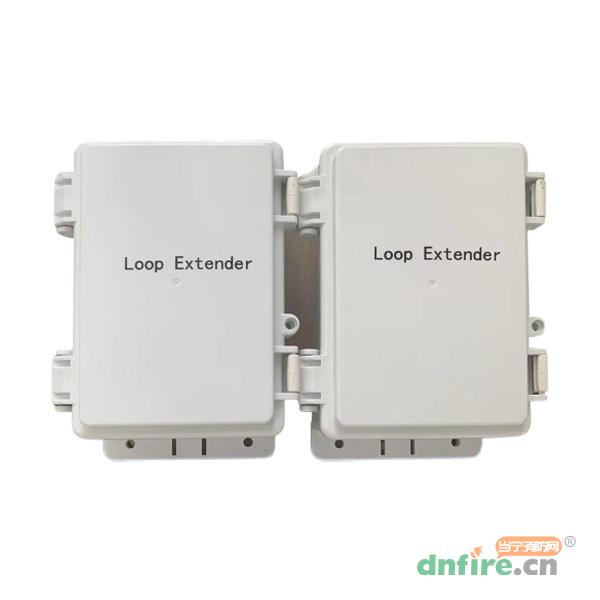

TC-ZJH6020 loop extender (hereinafter referred to as repeater) uses AC220V for power supply and isequipped with spare battery. The electrical isolation between the input and output of the bus signal can en-hance the anti-interference ability of the whole system and has the function of extending the communica-tion distance of the detector bus.
二、TC-ZJH6020/6021Loop Extender的特点
•Bus nonpolar connection;
•Increase the bus voltage and extend the bus communication distance;
•With output short circuit detection function;
•Up to 255 devices can be attached;
•Wall-mounted structure,convenient and reliable installation.
三、TC-ZJH6020/6021Loop Extender的技术参数
main power supply
AC220V/rated working voltage AC220V
Standby power supply: lithium battery 7.4V/3400MAh
Output capacity
800mA
Load capacity and compatibility
1~255 bus devices can be connected,
compatible with all detector bus devices.
Bus extension distance
1000m
Loop impedance
≤40Ω
Environment
Temperature: 0℃ ~+55℃
Relative humidity ≤95%, no condensation
